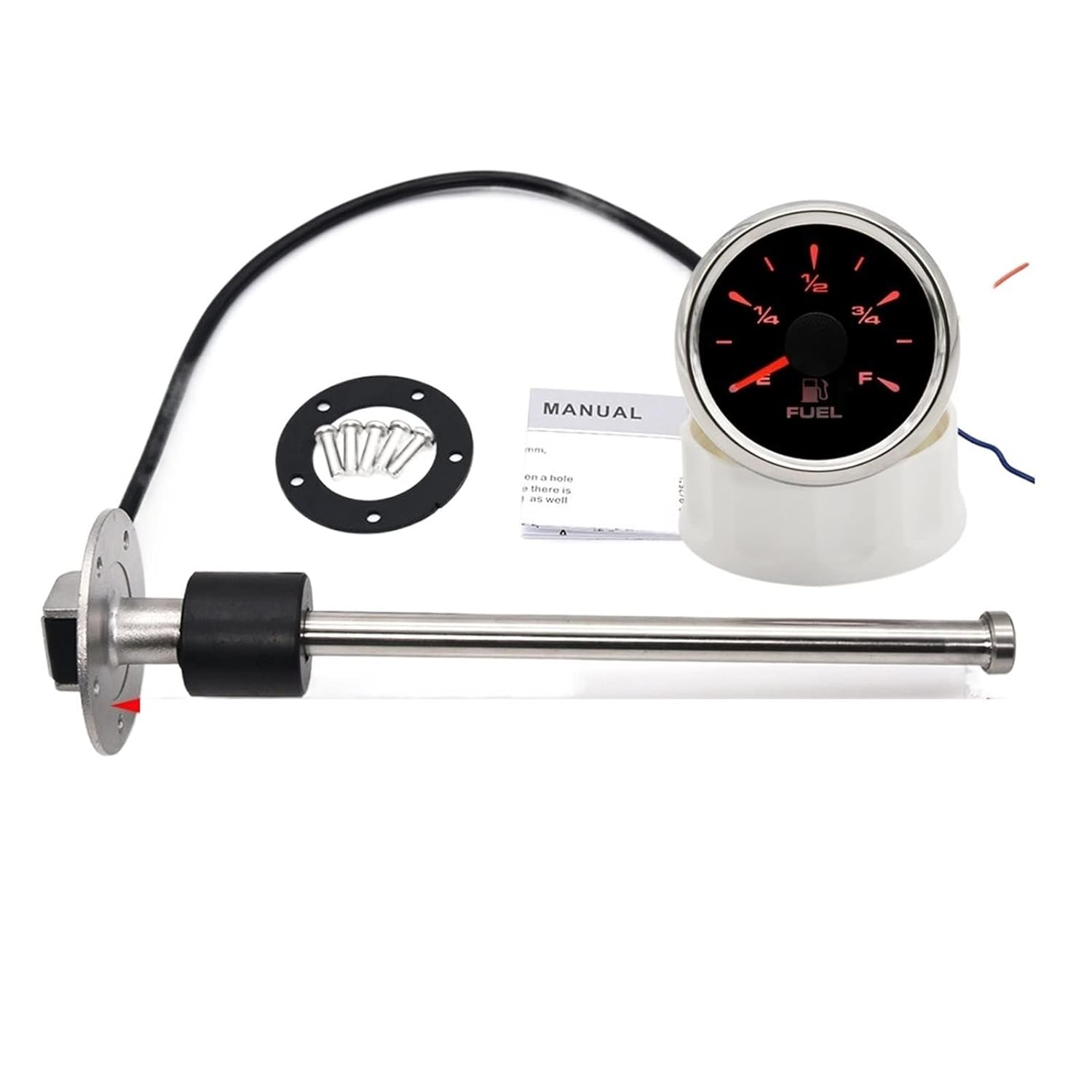

Level Gauge Universal Fuel Level Gauge Sensor Stainless Steel 0-190ohm 100-500mm 9-32V Car Boat Yacht(Only Gauge)

Universal Fuel Level Gauge 0-190ohm Stainless Steel Fuel Level Sensor 100-500mm For Car Boat Marine Yacht 9-32VSensor parameter:-Resolution range: 21 mm-Assembly: SAE standard 5 holes-Operating temperatures: - 40 to 85-Rated current for alarm switch: 500mA-Operating temperatures: - 40 to 85 Celsius-Level Sensor fit for Diesel & Gasoline EngineFit for Fuel Level Gauge and Water Level GaugeLiquid level sensor length100mm,125mm,150mm,200mm,250mm300 mm ,350 mm ,400mm,500mmand so on-Mounting: 5 pieces of M5 screws and 2 mm thick gasket-Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American)Gauge Specification:- Material:stainless steel 316L+anti-fog glass- Install diameter:52mm or 2-1/16"- Indication range:E~F- Connection method:row insert- Backlight color:red,green,blue,white,yellow,olivine,orange,purple,totally 8 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back "set" button- Working voltage:9~32vdc- Input signal:0~190ohm,0~180ohm,10~180ohm,240~33ohm,240~30ohm- Users can select the input resistance by themselves as below:press the back "Mode"button for 3 seconds to enter the setting mode,back light flickering for a while.the needle point at the "E"position,and you could select the corresponding parameter via press the buttonPackage Includes:1x Fuel Level Gauge1x Wiring harness1x Installation Instruction1xSensor

• -Assembly: SAE standard 5 holes
• -Resolution range: 21 mm
• -Rated current for alarm switch: 500mA
• -Operating temperatures: - 40 to 85
• High quality material make it more stable characteristics, high reliability, high sensitivity, quick responsive, high accurate. with self-test function to make sure your gauge is functioning properly and calibrated correctly.
